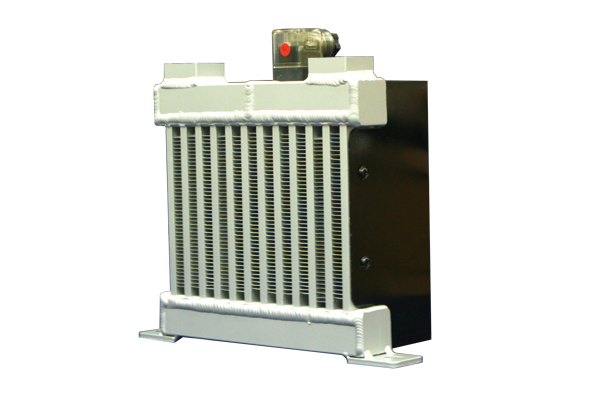

A06
Product Feature
| Flow (L/min) | Cooling Capacity (Kcal/hr) | Max. Operating Pressure (kg/cm2) | Voltage (V, ±10%) | Frequency (Hz) | Electric Current (A) | Power (Watt) | Rotation Rate (RPM) | Air Capacity (m3/hr) | Protection (IP) | Noise (dB(A)) | Approal | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | — (without fan) | 5 | — | — | — | — | — | — | — | — | — | 1.0 |
| 680 (4" fan) | DC12 | — | 0.6 | 7.2 | 2600 | 187 | 54 | 44 | CF | 2.4 | ||
| DC24 | — | 0.3 | 7.2 | 2600 | 187 | 44 | ||||||
| 110 | 50/60 | 0.24/0.27 | 19/23 | 2700/3100 | 142.8/178.5 | 45/51 | ||||||
| 220 | 50/60 | 0.12/0.14 | 20/24 | 2700/3100 | 142.8/178.5 | 45/51 | ||||||
| 850 (6" fan) | DC12 | — | 0.96 | 11.5 | 3000 | 384.2 | 51 | 2.7 | ||||
| DC24 | — | 0.48 | 11.5 | 3000 | 384.2 | 51 | ||||||
| 110 | 50/60 | 0.48/0.55 | 45/52 | 2800/3100 | 323/374 | 53/39 | ||||||
| 220 | 50/60 | 0.28/0.35 | 44/51 | 2800/3100 | 323/374 | 53/59 |
Product Specifications
