TL3-39-I
Product Feature
| Flow (L/min) | Cooling Capacity (Kcal/hr) | Max. Operating Pressure (kg/cm2) | Voltage (V, ±10%) | Frequency (Hz) | Electric Current (A) | Power (Watt) | Rotation Rate (RPM) | Air Capacity (m3/hr) | Protection (IP) | Noise (dB(A)) | Approal | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 18000 | 20 | 220 | 50 / 60 | 0.70 / 0.80 | 150 / 180 | 1400 / 1700 | 4380 / 5610 | 54 | 62 / 65 | CE | 25.9 |
| 380 | 50 / 60 | 0.36 / 0.40 | 150 / 180 | 1400 / 1700 | 4380 / 5610 |

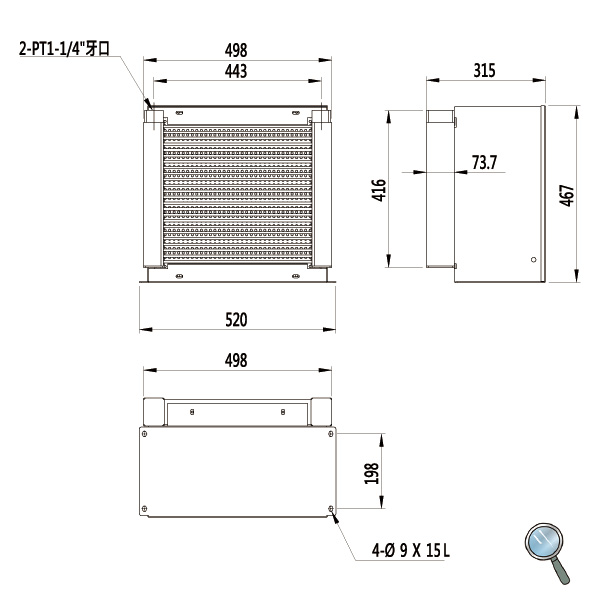

Product Specifications
