TL3-39-D
Product Feature
| Flow (L/min) | Cooling Capacity (Kcal/hr) | Max. Operating Pressure (kg/cm2) | Voltage (V, ±10%) | Frequency (Hz) | Electric Current (A, ±10%) | Power (Watt) | Rotation Rate (RPM, ±5%) | Air Capacity (m3/hr) | Protection (IP) | Noise (dB(A)) | Approal | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 18000 | 20 | DC12 | — | 4.5 | 54 | 2495 | 1360 | 54 | 70.6 | CE | 12.4 |
| DC24 | — | 2.5 | 30 | 2272 | 1097 | 74.3 | ||||||
| 220 | 50 / 60 | 0.36 / 0.45 | 40 / 50 | 1450 / 1650 | 2700 / 3300 | 62 / 65 | ||||||
| 380 | 50 / 60 | 0.18 / 0.23 | 40 / 50 | 1450 / 1650 | 2700 / 3300 | 62 / 65 |

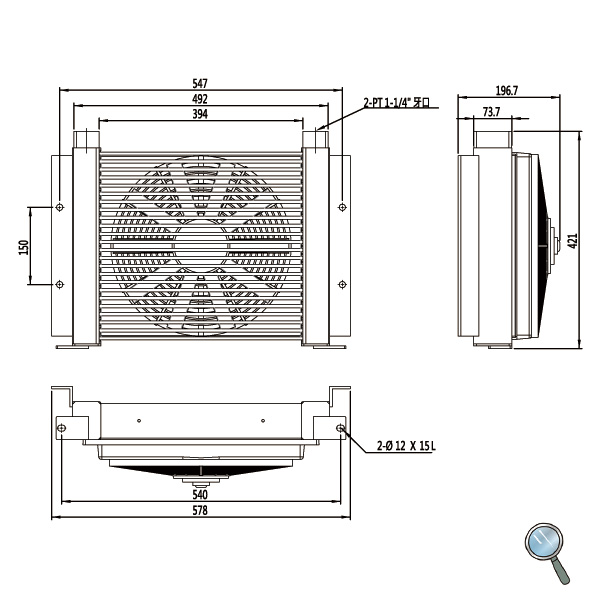

Product Specifications
